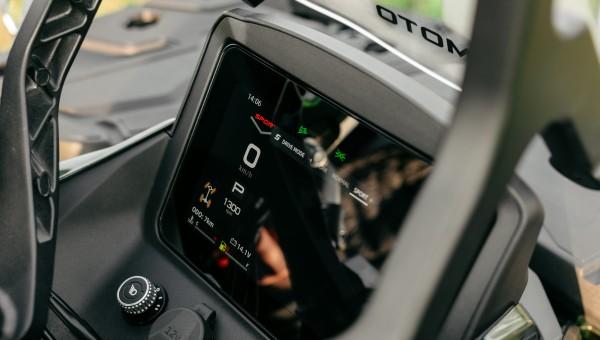

017-inch TFT
The colour TFT brings vehicle information into one view above the handlebars. Its role is to show riding data and settings clearly; a large screen alone does not imply CarPlay or phone navigation.
Colour instrument display
Adventure ATV
CFORCE 1000 OVERLAND
THE TRAIL IS CALLING.
An adventure-focused ATV with a 963cc V-twin and purposeful equipment for the outdoors. The CFORCE 1000 OVERLAND is built around the journey beyond the road.
Import duty & applicable taxes included.
Features at a glance
COLOURS & CONFIGURATION
MAKE IT YOURS.
- Desert Tan
- Galaxy Grey
Manufacturer colour options shown. Your quote confirms the top factory trim and colour; optional accessories are listed separately.
Ask your Ghana dealer to confirm the supplied trim and included equipment.
963cc
Engine displacement
85Nm
Maximum torque
300mm
Ground clearance
CFORCE 1000 OVERLAND. AT A GLANCE.
- Bosch EFI
Choose a number to explore each feature.
Feature 1 of 9: 7-inch TFT. The colour TFT brings vehicle information into one view above the handlebars. Its role is to show riding data and settings clearly; a large screen alone does not imply CarPlay or phone navigation.
THE TRAIL IS CALLING.
An adventure-focused ATV with a 963cc V-twin and purposeful equipment for the outdoors. The CFORCE 1000 OVERLAND is built around the journey beyond the road.
Engine displacement
963cc V-twin engine.
Maximum torque
85Nm maximum torque.
Ground clearance
300mm ground clearance.
TAKE A CLOSER LOOK.
Genuine CFORCE 1000 OVERLAND cockpit and equipment imagery. Manufacturer demonstration screens are shown; language, connected services and equipment depend on your Ghana specification.
THE DETAILS MATTER.
Engine
- Engine Type
- V-twin, 4-stroke, liquid-cooled
- Displacement
- 963cc
- Maximum Torque
- 85N.m@5500rpm
- Fuel Supply
- Bosch EFI
- Transmission
- CVT, P-R-N-H-L
Dimensions & Weight
- Length x Width x Height
- 2435×1282×1465 mm
- Wheelbase
- 1480 mm
- Minimum Ground Clearance
- 300 mm
- Dry Weight
- 489kg
- Payload Capacity
- 300 kg
- Fuel Capacity
- 26 L
- Colours
- Desert Tan / Galaxy Grey
Chassis
- Drive
- 2WD/4WD with locking differential
- Brake
- Four-wheel hydraulic disc brakes, single-piston caliper
- Front Suspension
- High clearance A-arm independent, 230mm travel
- Rear Suspension
- Trailing arm independent, 236mm travel
- Shock Absorber
- Coil spring shock absorbers with oil dampening
- Rim
- 14-inch alloy
- Front Tire
- 27x 9 R14
- Rear Tire
- 27x 11 R14
Equipment & Connectivity
- Display
- 7-inch TFT instrument display
- Steering
- Electronic power steering
- Ride modes
- Selectable ride modes
- Winch
- 3,500lb with synthetic rope
- Windscreen
- Adjustable windscreen with integrated handguards
- Protection
- Heavy-duty bumpers, skid protection and aluminium front bash plate
- Lighting
- LED lighting; supplementary flood lights in the Overland equipment reference
- Luggage
- Travel cases and passenger accommodation
- Suspension configuration
- Manufacturer feature copy describes adjustable piggyback gas shocks; its technical table lists oil-damped coil shocks. Ghana quote confirms the supplied Overland package
Optional Accessories
- Wheel package
- 14-inch beadlock wheels appear in the premium feature reference; exact supplied wheels confirmed in your quote
Manufacturer reference specifications can vary by market, trim and model year. Optional equipment may be shown. Confirm your Ghana specification and ATV / UTV warranty terms with your Ghana dealer. Confirm your Ghana specification
