01Apple CarPlay touchscreen
The Premium 8-inch MMI touchscreen includes Apple CarPlay. Connect a compatible iPhone to use supported navigation apps, calls and music alongside the vehicle information.
8-inch MMI · Premium equipment included
Touring ATV
CFORCE 850 TOURING
MORE OF THE OUTDOORS.
An 800cc V-twin touring ATV made for exploring beyond the tarmac. The CFORCE 850 TOURING combines useful power with off-road ground clearance.
Import duty & applicable taxes included.
Features at a glance 3-year warranty + free servicing for 2 years or 20,000 km, whichever comes first*
COLOURS & CONFIGURATION
MAKE IT YOURS.
- Bordeaux Red
- Forest Green
- Nebula Black
- Solar Silver
- TrueTimber Kanati
Choose your preferred colour. Optional accessories are listed separately.
Premium equipment: 8-inch MMI touchscreen with Apple CarPlay, 27-inch tyres, 14-inch beadlock wheels and hydraulic gas shocks.
800cc
Engine displacement
75hp
Maximum power
285mm
Ground clearance
CFORCE 850 TOURING. AT A GLANCE.
- Bosch EFI
- Apple CarPlay
Choose a number to explore each feature.
Feature 1 of 9: Apple CarPlay touchscreen. The Premium 8-inch MMI touchscreen includes Apple CarPlay. Connect a compatible iPhone to use supported navigation apps, calls and music alongside the vehicle information.
MORE OF THE OUTDOORS.
An 800cc V-twin touring ATV made for exploring beyond the tarmac. The CFORCE 850 TOURING combines useful power with off-road ground clearance.
Engine displacement
800cc V-twin engine.
Maximum power
75hp maximum power.
Ground clearance
285mm ground clearance.
TAKE A CLOSER LOOK.

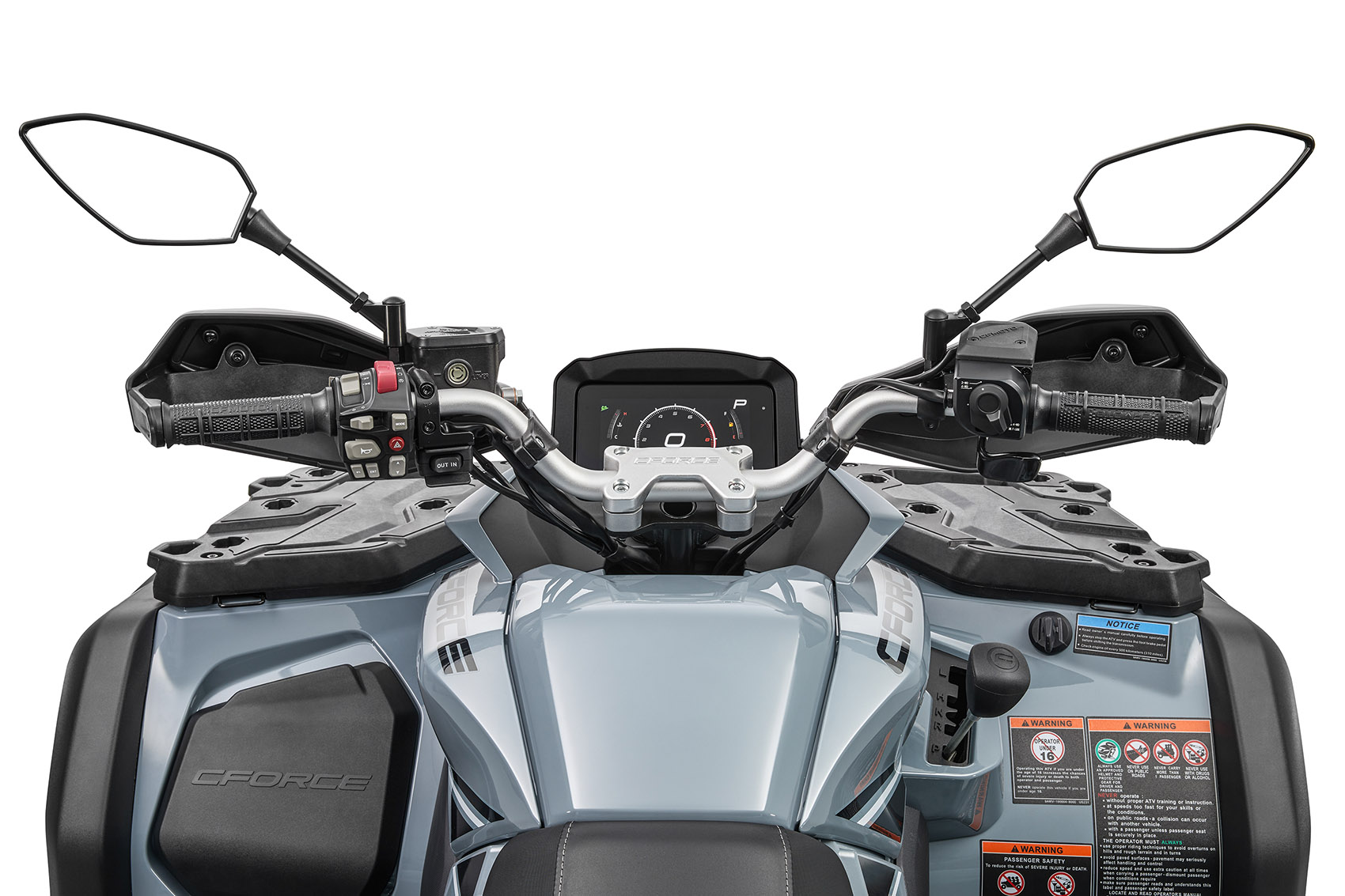

Explore the CFORCE 850 TOURING cockpit and equipment in detail. Display images show example screens.
THE DETAILS MATTER.
Engine
- Engine Type
- V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
- Displacement
- 800cc
- Maximum Power
- 75hp@7500rpm
- Maximum Torque
- 70Nm@5500rpm
- Fuel Supply
- Bosch EFI
- Transmission
- CVT, P-R-N-H-L
- Cooling
- Liquid-cooled
Dimensions & Weight
- Length x Width x Height
- 2445 x 1264 x 1450mm
- Wheelbase
- 1480mm
- Ground Clearance
- 285mm
- Dry weight
- 465 kg — Italian Premium specification (dry weight)
- Towing Capacity
- 800 kg — Premium specification; supplied hitch and operating limits apply
- Load Capacity
- 300kg
- Winch
- 3500lbs
- Fuel Capacity
- 26L
- Colours
- Bordeaux Red / Forest Green / Nebula Black / Solar Silver / TrueTimber Kanati
- Front rack capacity
- 45 kg; included in total payload
- Rear rack capacity
- 90 kg; included in total payload
Chassis
- Drive
- 2WD/4WD/4WD Lock (front differential)
- EPS
- Triple-Mode EPS
- Brake
- Four-wheel hydraulic disc brakes, single-piston caliper
- Shock Absorber
- Hydraulic gas shocks — Premium equipment
- Rim
- 14-inch beadlock aluminium wheels — Premium equipment
- Front tyre
- 27×9-14 — Premium equipment
- Rear tyre
- 27×11-14 — Premium equipment
- Front suspension travel
- 228mm
- Rear suspension travel
- 234mm
- Front suspension
- High-clearance A-arm independent; 228 mm travel
- Rear suspension
- Trailing-arm independent; 234 mm travel
Equipment & Connectivity
- Throttle
- Electronic
- Steering modes
- Three EPS assistance modes
- Hill descent control
- Electronic descent assist control
- Lighting
- High-intensity LED headlights
- Winch
- Synthetic rope, 3,500lb winch
- Storage
- 3.8L glovebox; CF-Connect front and rear racks
- Passenger accommodation
- Touring seat, backrest and handholds
- Ride modes
- Three: Sport, Normal and Work
- Cargo racks
- CF-Connect convertible racks
- Headlight
- High-intensity LED
- Differential lock
- Front differential lock
- Display
- 8-inch MMI touchscreen with Apple CarPlay — Premium equipment included
- Apple CarPlay
- Standard — compatible iPhone
- Taillight
- LED
- Phone connectivity
- Apple CarPlay navigation, calls and music with a compatible iPhone
Optional accessories are listed separately. Contact our team for availability, colour options and a quotation. Request a quote
