Touring ATV

CFORCE 1000 TOURING

MAKE MORE OF THE OUTDOORS.

The CFORCE 1000 TOURING pairs 963cc performance with a touring ATV layout for outdoor exploration. Explore the equipment and choose your next adventure.

Import duty & applicable taxes included.

Request a quote Compare

Features at a glance 3-year warranty + free servicing for 2 years or 20,000 km, whichever comes first*

COLOURS & CONFIGURATION

MAKE IT YOURS.

Bordeaux Red
Forest Green
Nebula Black
Solar Silver
TrueTimber Kanati

Choose your preferred colour. Optional accessories are listed separately.

Highest-spec equipment includes the premium 8-inch MMI touchscreen with Apple CarPlay.

963cc

Engine displacement

85Nm

Maximum torque

300mm

Ground clearance

CFORCE 1000 TOURING. AT A GLANCE.

Bosch EFI
Apple CarPlay

CFORCE 1000 TOURING with numbered component references, explained below — Official CFMOTO model image

Choose a number to explore each feature.

01Apple CarPlay touchscreen

The premium 8-inch MMI touchscreen is included in the supplied specification. Apple CarPlay brings supported navigation apps, calls and music from a compatible iPhone onto the display.

8-inch MMI · premium display included

MAKE MORE OF THE OUTDOORS.

The CFORCE 1000 TOURING pairs 963cc performance with a touring ATV layout for outdoor exploration. Explore the equipment and choose your next adventure.

Engine displacement

963cc V-twin engine.

Maximum torque

85Nm maximum torque.

Ground clearance

300mm ground clearance.

TAKE A CLOSER LOOK.

Explore the CFORCE 1000 TOURING cockpit and equipment in detail. Display images show example screens.

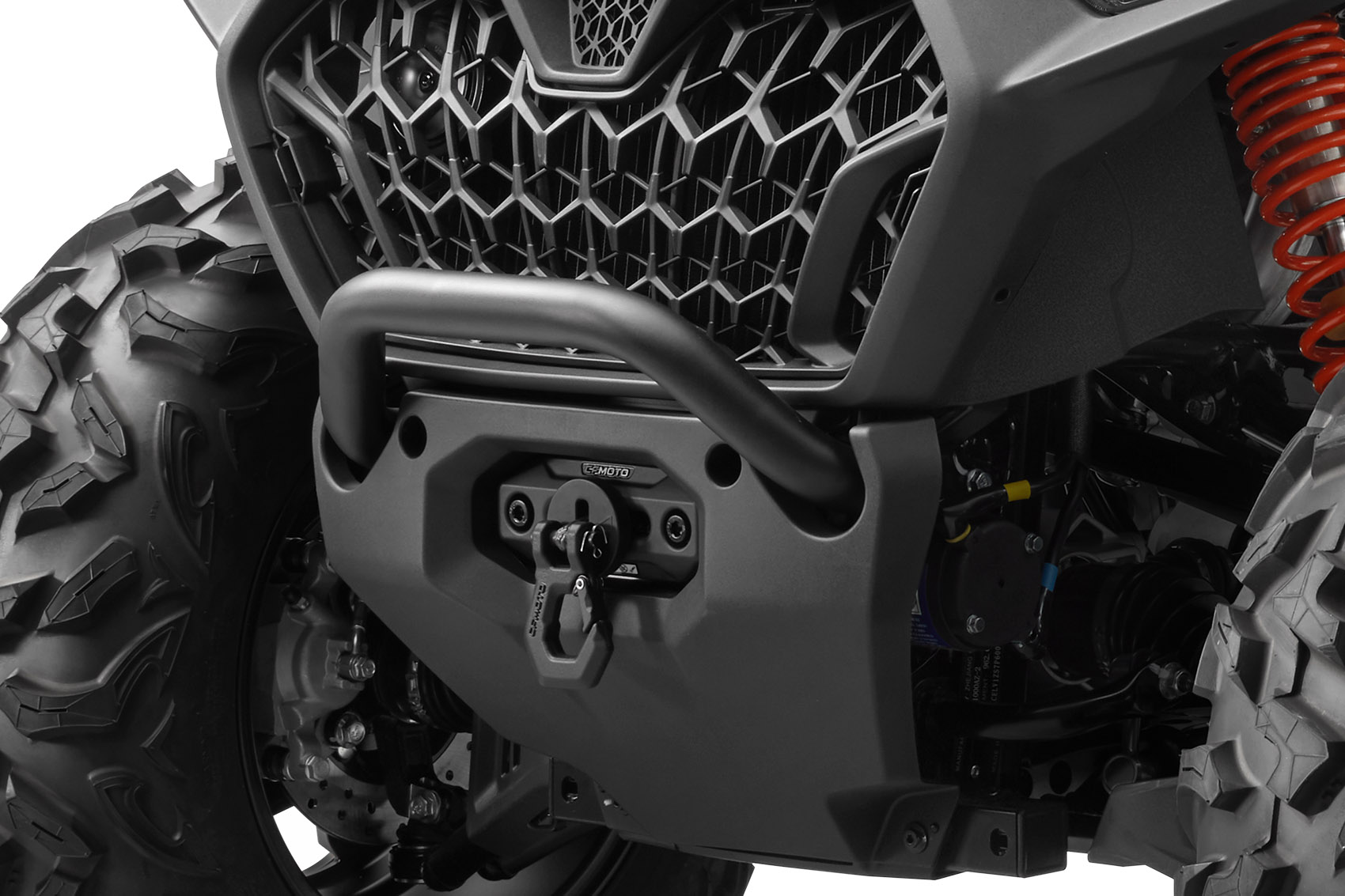

Front winch hook and fairlead, surrounding bumper, lower protection, grille and suspension are visible. — Front winch and protection

THE DETAILS MATTER.

Engine

Engine Type: V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
Displacement: 963cc
Maximum Power: 90hp@7500rpm
Maximum Torque: 85Nm@5500rpm
Fuel Supply: Bosch EFI
Transmission: CVT, P-R-N-H-L
Cooling: Liquid-cooled

Dimensions & Weight

Length x Width x Height: 2445 x 1282 x 1465mm
Wheelbase: 1480mm
Ground Clearance: 300mm
Curb Weight: 472kg
Towing Capacity: 820kg; supplied hitch and operating limits apply
Load Capacity: 300kg
Winch: 3500lbs
Fuel Capacity: 26L
Colours: Bordeaux Red / Forest Green / Nebula Black / Solar Silver / TrueTimber Kanati
Front rack capacity: 45 kg; included in total payload
Rear rack capacity: 90 kg; included in total payload

Chassis

Drive: 2WD/4WD/4WD Lock (front differential)
Brake: Four-wheel hydraulic disc brakes, single-piston caliper
Shock Absorber: Piggyback gas shock absorbers, compression/rebound adjustable
Front tyre: 27X9.00-14
Rear tyre: 27X11.00-14
Front suspension travel: 228mm
Rear suspension travel: 234mm
Front suspension: High-clearance A-arm independent; 228 mm travel
Rear suspension: Trailing-arm independent; 234 mm travel
Wheels: 14-inch beadlock aluminium wheels — Premium equipment

Equipment & Connectivity

Display: 8-inch MMI touchscreen with Apple CarPlay — premium display package included
Throttle: Electronic
Hill descent control: Electronic descent assist control
Lighting: High-intensity LED headlights
Winch: Synthetic rope, 3,500lb winch
Storage: 3.8L glovebox; CF-Connect front and rear racks
Passenger accommodation: Touring seat, backrest and handholds
Ride modes: Three: Sport, Normal and Work
Apple CarPlay: Standard — compatible iPhone
Phone connectivity: Apple CarPlay; Bluetooth calls and media
Cargo racks: CF-Connect convertible racks
Headlight: High-intensity LED
EPS: Electronic power steering with four selectable assist modes
Steering modes: Four EPS assistance modes — Premium equipment
ABS: Included — Premium equipment
T-Box: Standard — Premium equipment
Differential lock: Front differential lock

Optional accessories are listed separately. Contact our team for availability, colour options and a quotation. Request a quote
